Bayamo
Overview
- Lightweight
- Stiffness
- Aerodynamics
- Comfort
In perfect trim. A state that comes naturally to the BAYAMO. It's the feeling of everything being in complete harmony, making the effort effortless. Don't fight, flow.

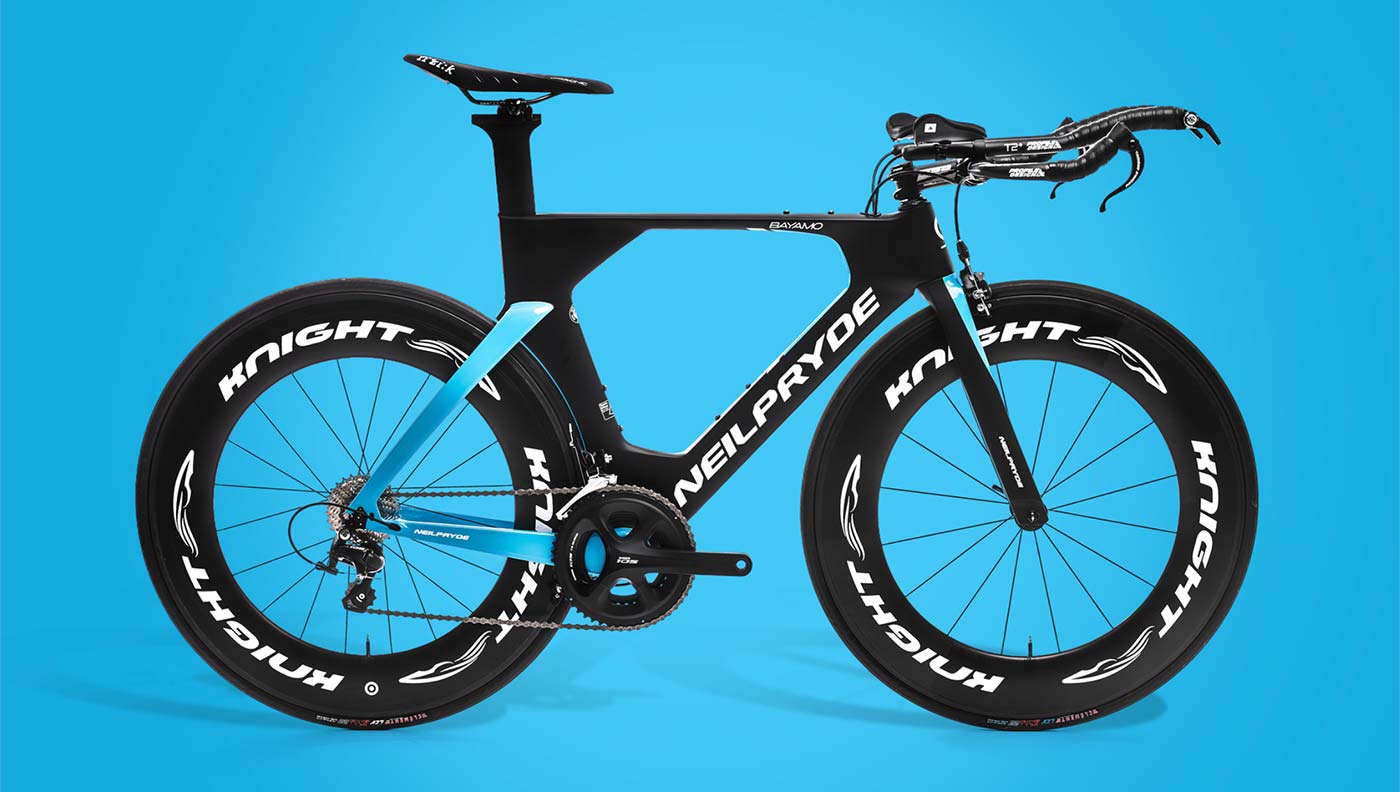

The BAYAMO blurs the line between where the bike ends and the rider begins. The two becoming a seamless speed machine. Razorblade aerodynamics, mile melting comfort and stability – it's a true next-gen frame that cries out for high-watt power. The BAYAMO is a Tri and TT bike with soul. The heart is down to you.

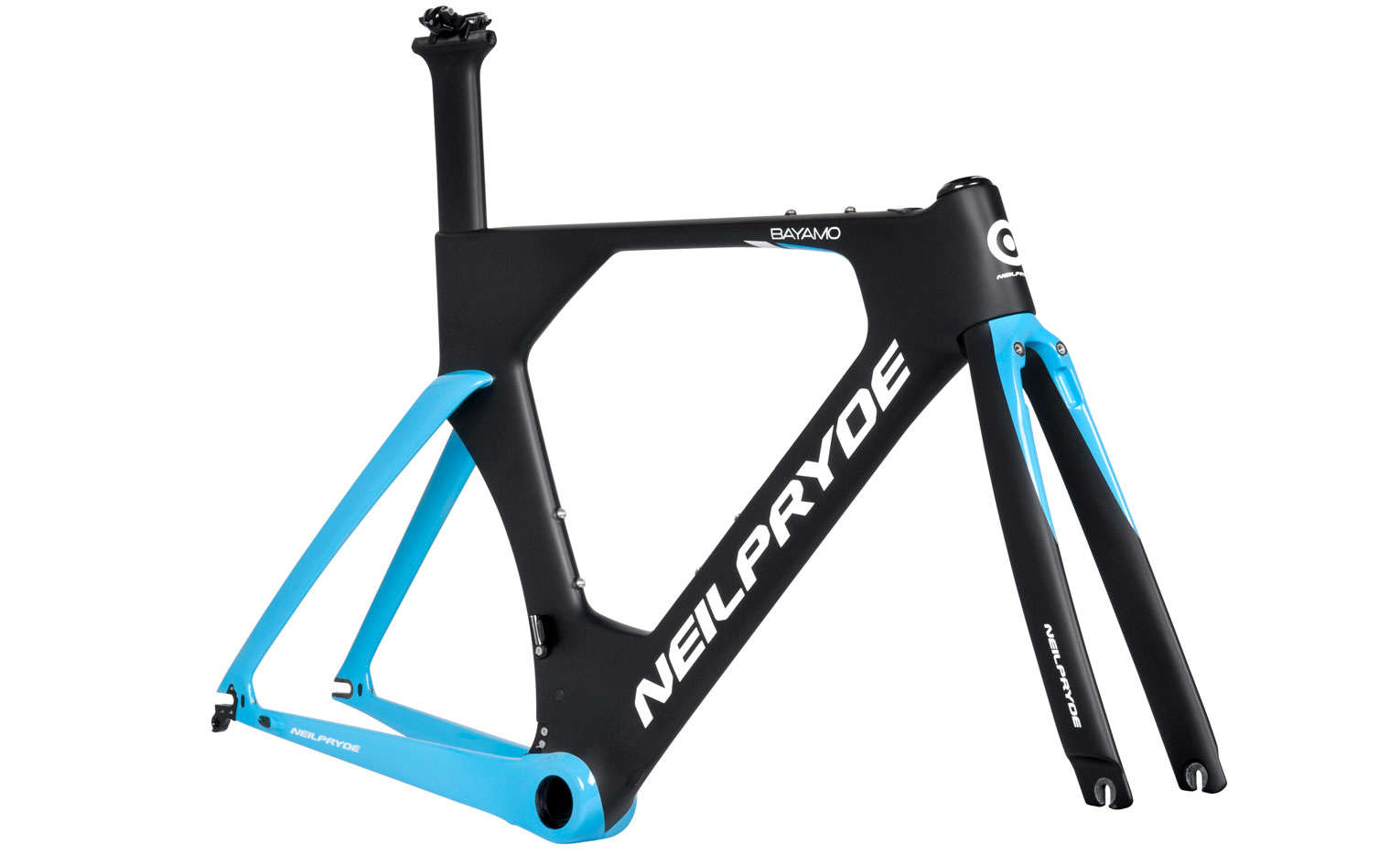

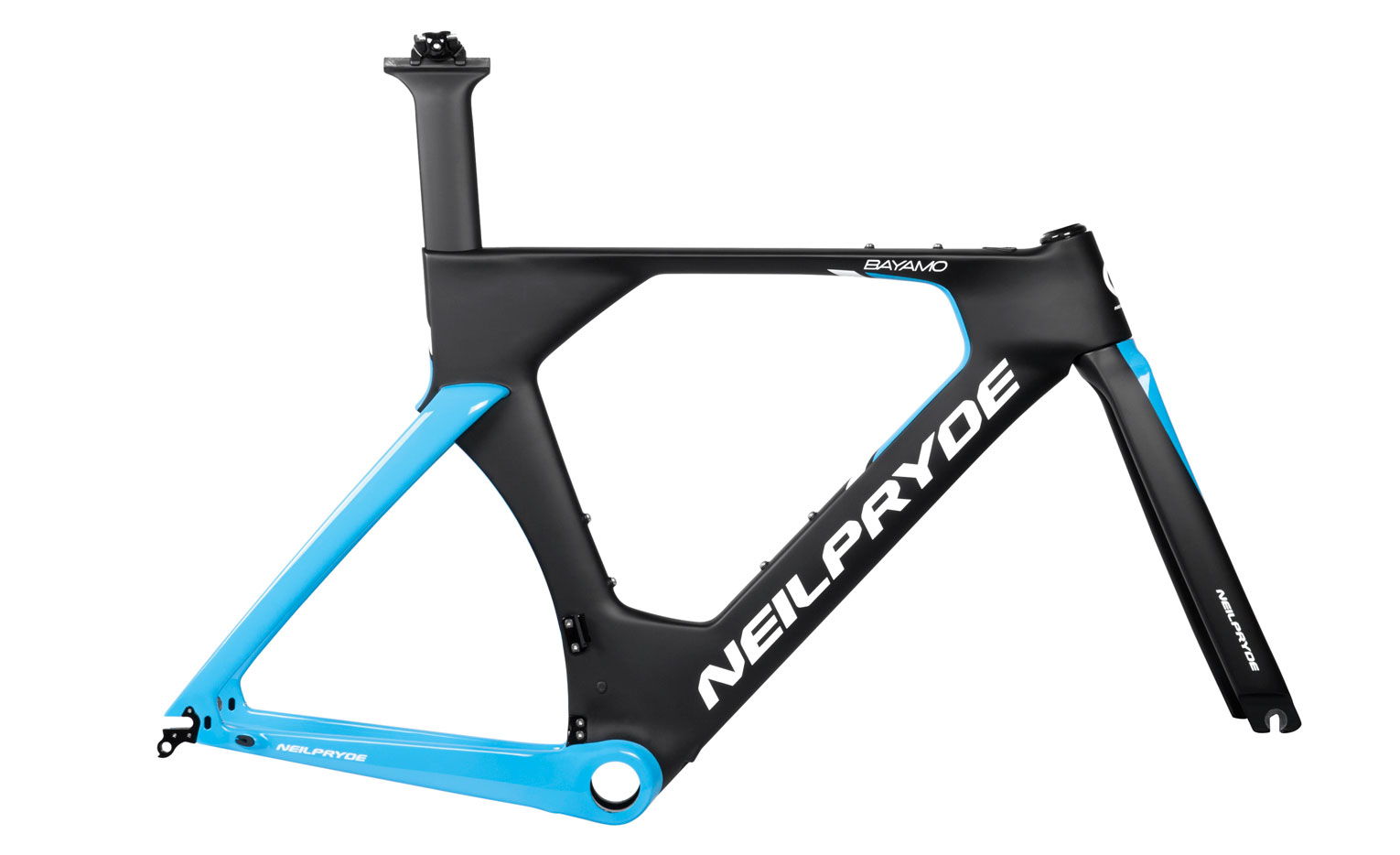

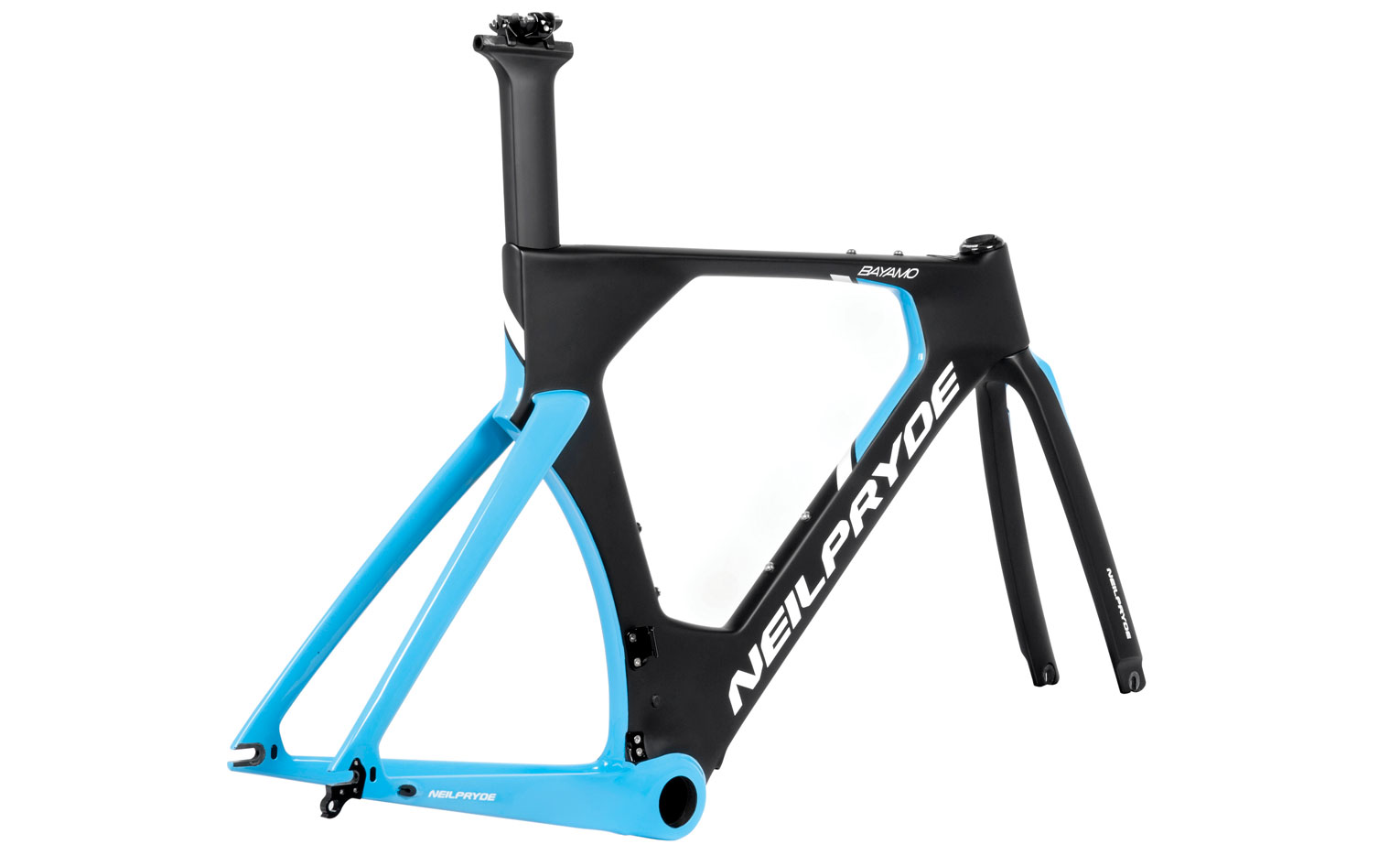

The UCI approved frame works with Kamm-tail aerofoils in the head tube, fork and down tube to increase stiffness to weight ratio and improve aerodynamic performance.

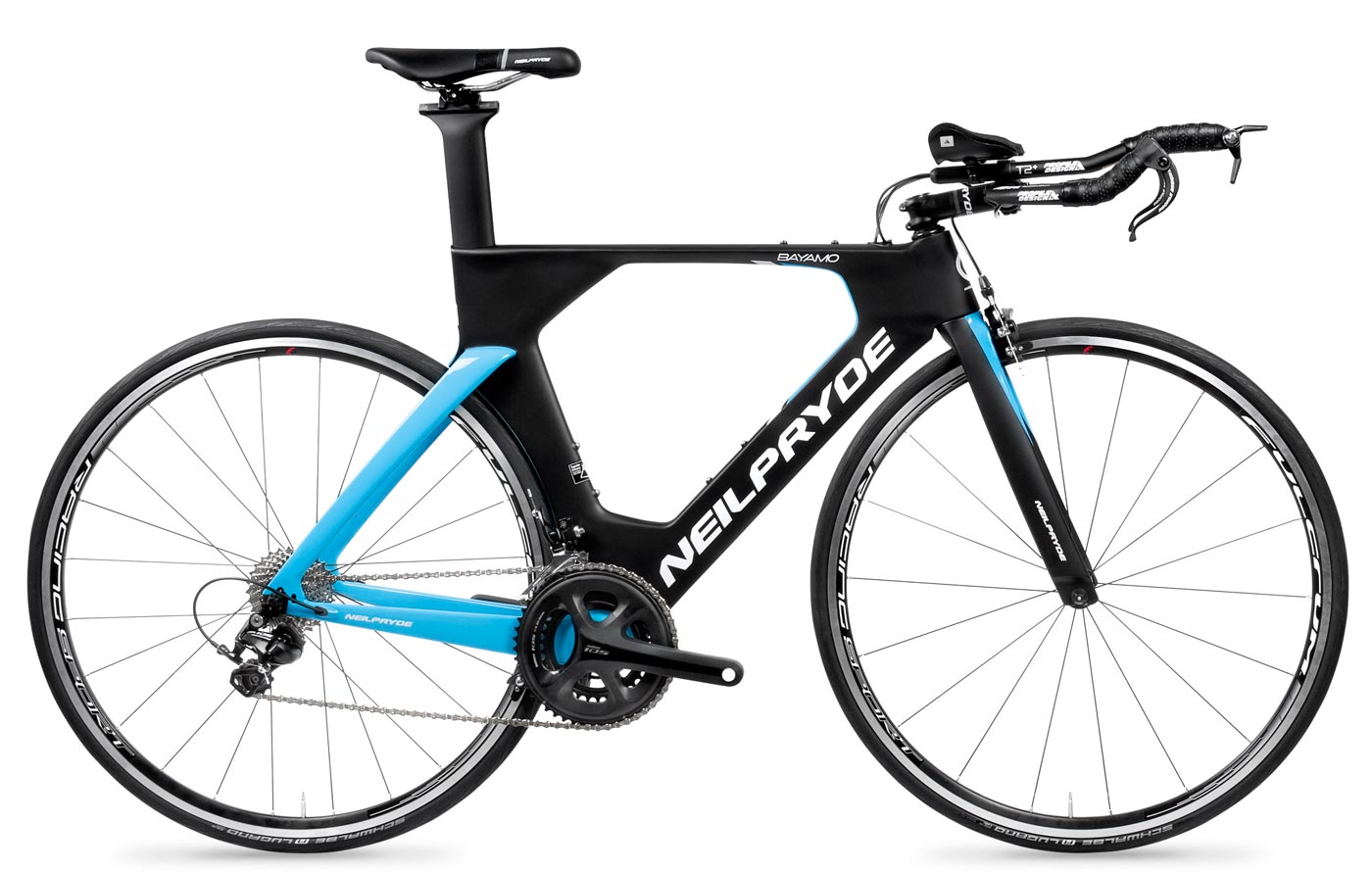

| Frame |
| Fork |
| Sizes |
| Weight |
| Colour |
| BB Spec |
| Seatpost |
| Bar |
| Stem |
| Groupset |
| Brakes |
| Crankset |
| Chain |
| Cassette |
| Wheels |
| Tyres |
| Saddle |
|
|---|
| Bayamo – C6.7 TORAY UD |
| Bayamo – C6.7 TORAY UD |
| XS, S, M, L, XL |
| 1280g (L/56cm) Frame Only |
| UD / Blue / White – Gloss |
| PF30 |
| Bayamo Aeroblade |
| Profile Design |
| NP |
| 105 5800 |
| BR-5810 |
| FC-5800 52-36T |
| FSA CN-1102N |
| CS-5800 11-28 |
| Fulcrum Racing Sport |
| Schwalbe Lugano 25c |
| NP TT |
|
|---|
| Bayamo – C6.7 TORAY UD |
| Bayamo – C6.7 TORAY UD |
| XS, S, M, L, XL |
| 1280g (L/56cm) Frame Only |
| UD / Blue / White – Gloss |
| PF30 |
| Bayamo Aeroblade |
| - |
| - |
| - |
| - |
| - |
| - |
| - |
| - |
| - |
| - |

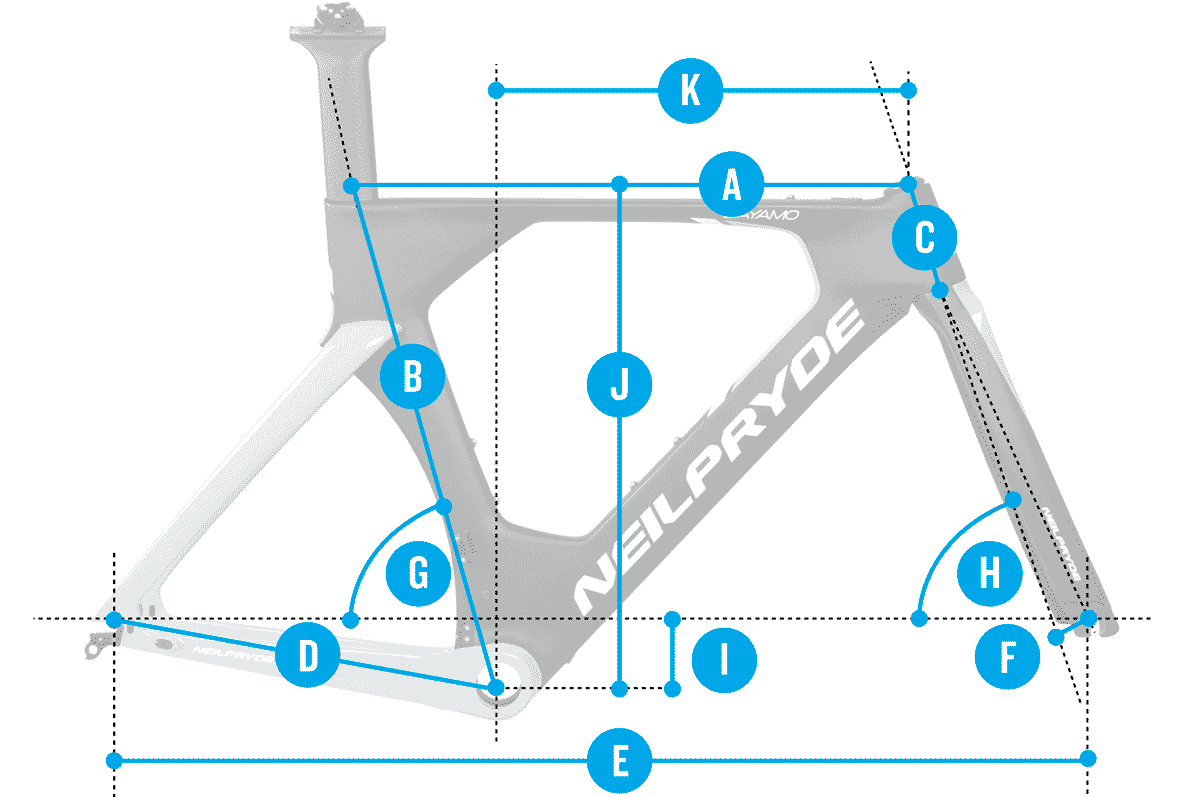

| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | Top Tube | 492 | 519 | 541 | 563 | 586 |
| B | Seat Tube | 485 | 485 | 510 | 537 | 564 |
| C | Head Tube | 80 | 80 | 106 | 134 | 161 |
| D | Chainstay | 390 | 390 | 390 | 390 | 390 |
| E | Wheelbase | 930 | 954 | 979 | 1002 | 1026 |
| F | Fork Rake | 43 | 43 | 43 | 43 | 43 |
| G | Seat Tube Angle | 76° | 76° | 76° | 76° | 76° |
| H | Head Tube Angle | 72.5° | 72.8° | 72.8° | 72.8° | 72.8° |
| I | BB Drop | 65 | 65 | 65 | 65 | 65 |
| J | Stack | 479 | 480 | 506 | 532 | 558 |
| K | Reach | 372 | 399 | 415 | 431 | 447 |
| Stem | 80 | 90 | 100 | 100 | 110 | |
| Crank | 165 | 170 | 175 | 175 | 175 | |
| Handlebar | 400 | 400 | 400 | 400 | 400 | |
| Seatpost | 300 | 300 | 300 | 350 | 350 |
C6.7
C6.7 carbon fiber is used when a high stiffness-to-weight ratio is required while maintaining adequate compliance for the most challenging of races. A blend of medium and high modulus Toray© T700 and 46T, uni-directional carbon fibers are laid-up to maximize strength and keep the overall weight low. Superior strength and durability compared to the industry standard.
OTP Stiffness
Optimised tube profiles developed using finite element analysis enable frame stiffness to be maximized in critical areas to ensure efficient power transfer.
OTP Comfort
Engineering a more compliant grade of carbon fiber into isolated regions of the frame, combined with adjusting the wall thickness and carbon lay-up in specific tubes, ensures road vibrations are efficiently managed, resulting in a smooth ride.
